| Brand Name : | HSMAG |
| Model Number : | Sm2Co17 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 15,000pcs 15 days |
| Delivery Time : | 15 days |
SmCo magnets has the highest temperature of 350℃, it has high magnetic properties,excellent temperature characteristic and corrosion resistance.It is widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors andother fields.

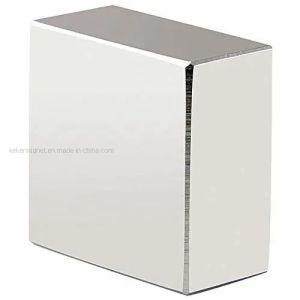

And it can be produced in different shapes(round, square, ring, tile, bread), different properties
(SmCo5 and Sm2Co17), different sizes(Wafer diameter1≤R≤100mm,Square≤130mm)
Hengxin Magnetic Materials attaches great importance to product quality, and has formulated a perfect quality control system and process, which is effectively implemented in practice. The Quality Control department is the total quality management department, which is fully responsible for the quality management of the design and trial production process, the manufacturing process, the auxiliary production process, the finished product quality management, and the quality service of the product in use.
Hengxin Magnetic materials passed ISO9001:2015 certification and IATF16949:2016 certificate on February 3, 2021
SmCo1:5 Magnet is also called SmCo5, the highest working can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.
SmCo2:17 Magnet is also called Sm2Co17, the highest working can be 350℃.Based on Sm, Co, copper, iron zirconium and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.
| 磁性能 | ||||||||||||||||||||
| 烧结钐钴磁体性能表(Magnetic Properties of Sintered SmCo Magnets) | ||||||||||||||||||||
| 牌号 | 剩磁 | 矫顽力 | 内禀矫顽力 | 最大磁能积 | 温度系数 | 最大工作温度Max.oper. Temp | 密度Density | |||||||||||||
| Grade | Remanece ( 20°C) | Coercivity (20°C) | Intrinsic coercive force ( 20°C ) | Energy Density | Temp.coefficient %/C | |||||||||||||||
| Br | Hcb | Hcj | (BH) max | 20-100°C | 20-150°C | |||||||||||||||
| Typ. | min | Min | Min | Typ. | min | Tk (Br) typ. | Tk (Hcj) typ. | Tk (Br) typ. | Tk (Hcj) typ | |||||||||||
| KGs | Tesla | KGs | Tesla | KOe | KA/m | KOe | KA/m | MGOe | KJ/m3 | MGOe | KJ/m3 | %/°C | %/°C | %/°C | %/°C | °C | °F | g/cm3 | ||
| SmCo5 | HSMAG/XG16 | 8.50 | 0.85 | 8.00 | 0.80 | 7.50 | 597 | 18.00 | 1433 | 16.00 | 127 | 14.00 | 111 | -0.04 | -0.14 | -0.045 | -0.22 | 250 | 482 | 8.1-8.3 |
| HSMAG/XG18 | 9.00 | 0.90 | 8.50 | 0.85 | 8.00 | 664 | 18.00 | 1433 | 18.00 | 143 | 16.00 | 127 | -0.04 | -0.14 | -0.045 | -0.22 | 250 | 482 | 8.1-8.3 | |
| HSMAG/XG20 | 9.50 | 0.95 | 8.80 | 0.88 | 8.50 | 677 | 15.00 | 1195 | 20.00 | 159 | 18.00 | 143 | -0.04 | -0.14 | -0.045 | -0.22 | 250 | 482 | 8.1-8.3 | |
| Sm2Co17 | HSMAG/XG24A | 10.30 | 1.03 | 9.50 | 0.95 | 8.50 | 677 | 25.00 | 1990 | 24.00 | 191 | 22.00 | 175 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 |
| HSMAG/XG26A | 10.50 | 1.05 | 10.30 | 1.03 | 9.00 | 716 | 25.00 | 1990 | 26.00 | 207 | 24.00 | 191 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG28A | 10.70 | 1.07 | 10.50 | 1.05 | 9.50 | 756 | 20.00 | 1592 | 28.00 | 223 | 26.00 | 207 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG30A | 11.00 | 1.10 | 10.70 | 1.07 | 10.00 | 796 | 20.00 | 1592 | 29.00 | 231 | 27.00 | 215 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG30EH | 11.20 | 1.12 | 10.80 | 1.08 | 10.20 | 812 | 20.00 | 1592 | 29.50 | 235 | 28.00 | 223 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG32A | 11.50 | 1.15 | 10.90 | 1.09 | 10.30 | 820 | 20.00 | 1592 | 30.50 | 243 | 28.50 | 226 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG33EH | 11.70 | 1.17 | 11.00 | 1.10 | 10.50 | 836 | 20.00 | 1592 | 31.50 | 251 | 29.00 | 235 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG18AH | 10.00 | 1.00 | 8.50 | 0.85 | 8.00 | 637 | 30.00 | 2388 | 18.00 | 143 | 15.00 | 119 | -0.02 | -0.15 | -0.03 | -0.16 | 400 | 752 | 8.3-8.5 | |
| Note | For large bread products, no thin size is allowed, because SmCo's huge brittleness will easily cause breakage during assembly | |||||||||||||||||||
Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.
|
|
