| Brand Name : | HSMAG |
| Model Number : | Sm2Co17 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100000PCS 15Days |
| Delivery Time : | 30 work days |
SmCo (Samarium Cobalt) permanent magnet
SmCo magnets has the highest temperature of 350℃, it has high magnetic properties,excellent temperature characteristic and corrosion resistance.It is widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors andother fields.

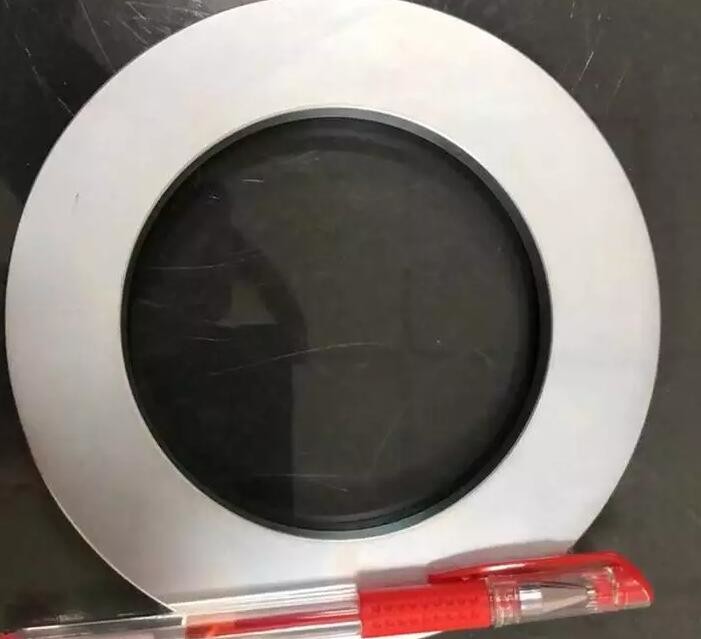

And it can be produced in different shapes(round, square, ring, tile, bread), different properties
(SmCo5 and Sm2Co17), different sizes(Wafer diameter1≤R≤100mm,Square≤130mm)
SmCo5 magnet is composed of SmCo alloy with Sm Co ratio of 1:5. According to weight, Sm accounts for 36% of the total. This SmCo alloy usually contains 36% Sm and a small amount of Co. This series of SmCo magnets can provide a maximum magnetic energy product of 25 MGOe and a reversible temperature coefficient of - 0.05% / ℃. In addition, this series is easier to calibrate to a specific magnetic field than Sm2Co17 series. The Sm2Co17 magnet consists of SmCo alloy with a SmCo ratio of 2:17. It also contains other elements, such as iron, copper, zirconium and hafnium in a small amount. The magnetic energy product of this property is higher, up to 32 MGOe, and the reversible temperature coefficient is - 0.03% / ℃.
Product Name | SmCo Magnet |
Material | SmCo Magnet (Sm2Co17, SmCo5) |
Normal size range | W=3-130mm,H=1.5-100mm,L=1-130mm |
Biggest size | According to your needs |
Smallest size | According to your needs |
Note | For large bread products, no thin size is allowed, because SmCo's huge brittleness will easily cause breakage during assembly |
Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.
|
|
