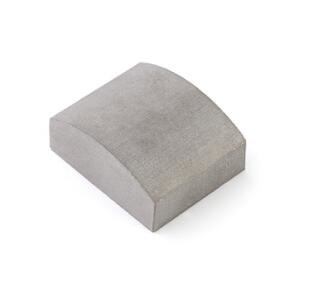

Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated

Mianyang Henshin Magnetic Material Co., Ltd.
Contact Now
    Buy cheap Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated from wholesalers

    Buy cheap Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated from wholesalers
    • Buy cheap Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated from wholesalers
    • Buy cheap Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated from wholesalers
    • Buy cheap Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated from wholesalers

    Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated

    Ask Lasest Price
    Brand Name : HSMAG
    Model Number : Sm2Co17
    Certification : ITAF16949 ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000PCS 15Days
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated

    Permanent Samarium Cobalt High Temperature Magnet,flexible magent, permanent magent
    Products Description

    SmCo5 magnet is composed of SmCo alloy with Sm Co ratio of 1:5. According to weight, Sm accounts for 36% of the total. This SmCo alloy usually contains 36% Sm and a small amount of Co. This series of SmCo magnets can provide a maximum magnetic energy product of 25 MGOe and a reversible temperature coefficient of - 0.05% / ℃. In addition, this series is easier to calibrate to a specific magnetic field than Sm2Co17 series. The Sm2Co17 magnet consists of SmCo alloy with a SmCo ratio of 2:17. It also contains other elements, such as iron, copper, zirconium and hafnium in a small amount. The magnetic energy product of this property is higher, up to 32 MGOe, and the reversible temperature coefficient is - 0.03% / ℃.


    The specific proportion is Sm: 23-28%; Rare earth metal Cobalt: 48-52%; Metallic element Fe: 14-17%; Metal element Cu: 5-7%; A small amount of Zr: 2-3% was added.

    Sm23-28%
    Co48-52%
    Fe14-17%
    Cu5-7%
    Zr2-3%

    Flexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy CoatedFlexible Permanent Sm2Co17 Magnet High Heat Resistant Magnets Epoxy Coated

    Froperties of SmC0 Magnets



    Company Profile




    Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.
