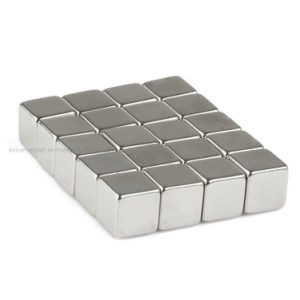

High temperature resistant samarium cobalt permanent magnet
SmCo5 and Sm2Co17 are the main components of samarium cobalt
magnets. Consists of samarium, cobalt and other rare earth metal
material proportioning, smelting alloy, after grinding, molding,
sintering, made of a magnetic material, high magnetic energy
product, low temperature coefficient, the highest working
temperature is 350 ℃, no negative temperature, in operating
temperature above 180 ℃, and the temperature stability and chemical
stability than ndfeb permanent magnet materials.
Sm2Co17 magnet is 2∶17 type samarium cobalt has excellent permanent magnet performance. Samarium cobalt permanent magnets are mainly made of rare earth elements such as samarium and cobalt, which are mainly divided into the first generation SmCo5(type 1:5) and the second generation Sm2Co17(type 2:17). Take the second generation of samarium-cobalt permanent magnet as an example, in which cobalt accounts for 48%-52%. The characteristics of samarium-samarium-cobalt permanent magnet are high magnetic properties, and its high temperature resistance is better than that of NdFeb permanent magnet. However, due to the high content of cobalt and its higher cost than neodymium, its downstream applications are relatively few, mainly in defense, aerospace, communications technology and other fields.
SmCo1:5 Magnet is also called SmCo5, the highest working can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.
| 磁性能 | ||||||||||||||||||||
| 烧结钐钴磁体性能表(Magnetic Properties of Sintered SmCo Magnets) | ||||||||||||||||||||
| 牌号 | 剩磁 | 矫顽力 | 内禀矫顽力 | 最大磁能积 | 温度系数 | 最大工作温度Max.oper. Temp | 密度Density | |||||||||||||
| Grade | Remanece ( 20°C) | Coercivity (20°C) | Intrinsic coercive force ( 20°C ) | Energy Density | Temp.coefficient %/C | |||||||||||||||
| Br | Hcb | Hcj | (BH) max | 20-100°C | 20-150°C | |||||||||||||||
| Typ. | min | Min | Min | Typ. | min | Tk (Br) typ. | Tk (Hcj) typ. | Tk (Br) typ. | Tk (Hcj) typ | |||||||||||
| KGs | Tesla | KGs | Tesla | KOe | KA/m | KOe | KA/m | MGOe | KJ/m3 | MGOe | KJ/m3 | %/°C | %/°C | %/°C | %/°C | °C | °F | g/cm3 | ||
| SmCo5 | HSMAG/XG16 | 8.50 | 0.85 | 8.00 | 0.80 | 7.50 | 597 | 18.00 | 1433 | 16.00 | 127 | 14.00 | 111 | -0.04 | -0.14 | -0.045 | -0.22 | 250 | 482 | 8.1-8.3 |
| HSMAG/XG18 | 9.00 | 0.90 | 8.50 | 0.85 | 8.00 | 664 | 18.00 | 1433 | 18.00 | 143 | 16.00 | 127 | -0.04 | -0.14 | -0.045 | -0.22 | 250 | 482 | 8.1-8.3 | |
| HSMAG/XG20 | 9.50 | 0.95 | 8.80 | 0.88 | 8.50 | 677 | 15.00 | 1195 | 20.00 | 159 | 18.00 | 143 | -0.04 | -0.14 | -0.045 | -0.22 | 250 | 482 | 8.1-8.3 | |
| Sm2Co17 | HSMAG/XG24A | 10.30 | 1.03 | 9.50 | 0.95 | 8.50 | 677 | 25.00 | 1990 | 24.00 | 191 | 22.00 | 175 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 |
| HSMAG/XG26A | 10.50 | 1.05 | 10.30 | 1.03 | 9.00 | 716 | 25.00 | 1990 | 26.00 | 207 | 24.00 | 191 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG28A | 10.70 | 1.07 | 10.50 | 1.05 | 9.50 | 756 | 20.00 | 1592 | 28.00 | 223 | 26.00 | 207 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG30A | 11.00 | 1.10 | 10.70 | 1.07 | 10.00 | 796 | 20.00 | 1592 | 29.00 | 231 | 27.00 | 215 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG30EH | 11.20 | 1.12 | 10.80 | 1.08 | 10.20 | 812 | 20.00 | 1592 | 29.50 | 235 | 28.00 | 223 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG32A | 11.50 | 1.15 | 10.90 | 1.09 | 10.30 | 820 | 20.00 | 1592 | 30.50 | 243 | 28.50 | 226 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG33EH | 11.70 | 1.17 | 11.00 | 1.10 | 10.50 | 836 | 20.00 | 1592 | 31.50 | 251 | 29.00 | 235 | -0.03 | -0.18 | -0.035 | -0.19 | 350 | 662 | 8.3-8.5 | |
| HSMAG/XG18AH | 10.00 | 1.00 | 8.50 | 0.85 | 8.00 | 637 | 30.00 | 2388 | 18.00 | 143 | 15.00 | 119 | -0.02 | -0.15 | -0.03 | -0.16 | 400 | 752 | 8.3-8.5 | |
| Note | For large bread products, no thin size is allowed, because SmCo's huge brittleness will easily cause breakage during assembly | |||||||||||||||||||
Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.
|
|
