| Brand Name : | HSMAG |
| Model Number : | Sm2Co17 |
| Certification : | ISO9001 RoHS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100000PCS 15Days |
| Delivery Time : | 30 work days |

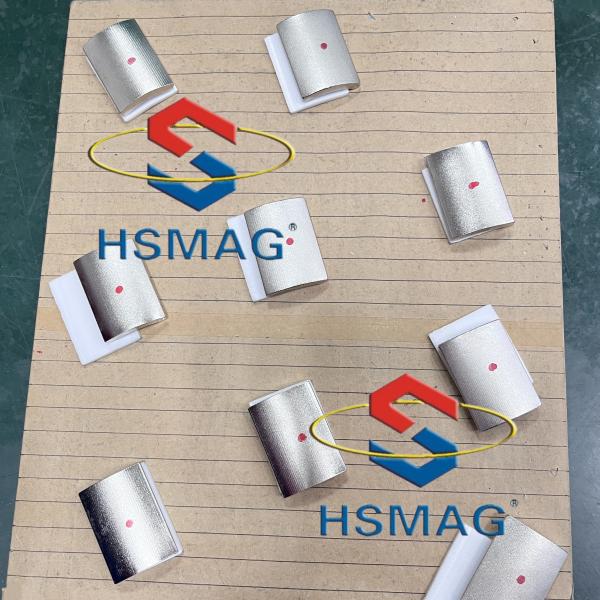

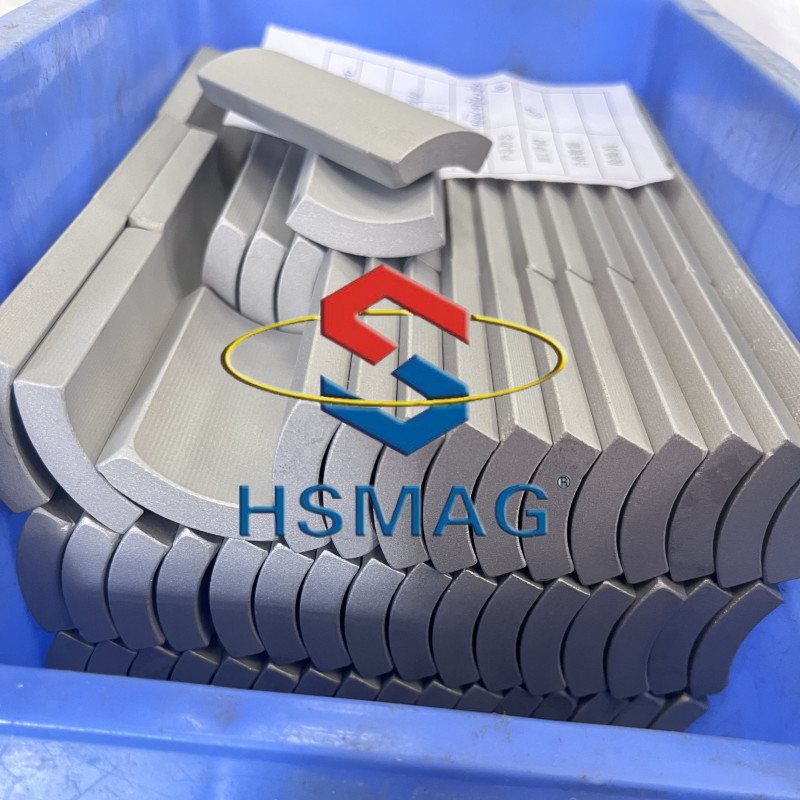

SmCo (Samarium Cobalt) permanent magnet
SmCo magnets has the highest temperature of 350℃, it has high magnetic properties,excellent temperature characteristic and corrosion resistance.It is widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors andother fields.
And it can be produced in different shapes(round, square, ring, tile, bread), different properties
(SmCo5 and Sm2Co17), different sizes(Wafer diameter1≤R≤100mm,Square≤130mm)
1:5 SmCo Magnet
SmCo1:5 Magnet is also called SmCo5, the highest working enviorment can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.
2:17 SmCo Magnet
SmCo2:17 Magnet is also called Sm2Co17, the highest working can be 350℃.Based on Sm, Co, copper, iron zirconium and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.
Product Name | SmCo Magnet |
Material | SmCo Magnet (Sm2Co17, SmCo5) |
Normal size range | W=3-130mm,H=1.5-100mm,L=1-130mm |
Biggest size | According to your needs |
Smallest size | According to your needs |
Note: | For large bread products, no thin size is allowed, because SmCo's huge brittleness will easily cause breakage during assembly |
Mianyang Hengxin Magnetic Materials Co., Ltd was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices. After years of development, the company's annual output of samarium cobalt permanent magnet materials reaches 500 tons. Now HSMAG is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.
|
|
