HSMAG's people's constant mission is to create excellence jointly HSMAG focus on product in detail to make our ideal true HSMAG pursues continous perfection to satisfy our customer at maximum
4 Years
| Ask Lasest Price | |
| Brand Name : | HSMAG |
| Model Number : | Sm2Co17 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100000PCS 15Days |
| Delivery Time : | 30 work days |
The maximum temperature of samarium cobalt magnet is 350 ℃, which
has high magnetism, excellent temperature characteristics and
corrosion resistance. It is widely used in aerospace, automotive
motor, electric vehicles motor, electronic instruments, magnetic
pumps, high-temperature lamps, sensors and other fields.

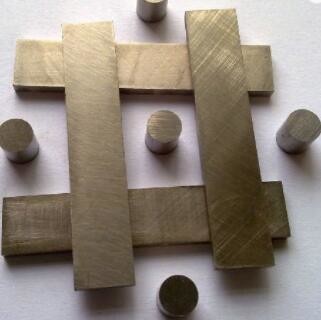

Sintered SmCo Magnet can be made into round, square, arc, ring,
ceramic tile, bread, irregular shape and other different shapes. It
also includes customization of different sizes (wafer diameter 1 ≤
R ≤ 100mm, square ≤ 130mm).
SmCo5 magnet is composed of SmCo alloy with Sm Co ratio of 1:5. According to weight, Sm accounts for 36% of the total. This SmCo alloy usually contains 36% Sm and a small amount of Co. This series of SmCo magnets can provide a maximum magnetic energy product of 25 MGOe and a reversible temperature coefficient of - 0.05% / ℃. In addition, this series is easier to calibrate to a specific magnetic field than Sm2Co17 series. The Sm2Co17 magnet consists of SmCo alloy with a SmCo ratio of 2:17. It also contains other elements, such as iron, copper, zirconium and hafnium in a small amount. The magnetic energy product of this property is higher, up to 32 MGOe, and the reversible temperature coefficient is - 0.03% / ℃.
SmCo1:5 Magnet is also called SmCo5, the highest working can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.
SmCo2:17 Magnet is also called Sm2Co17, the highest working can be 350℃.Based on Sm, Co, copper, iron zirconium and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.
Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.
|
|
